SV-20M (2)
  • SV-20M (2)

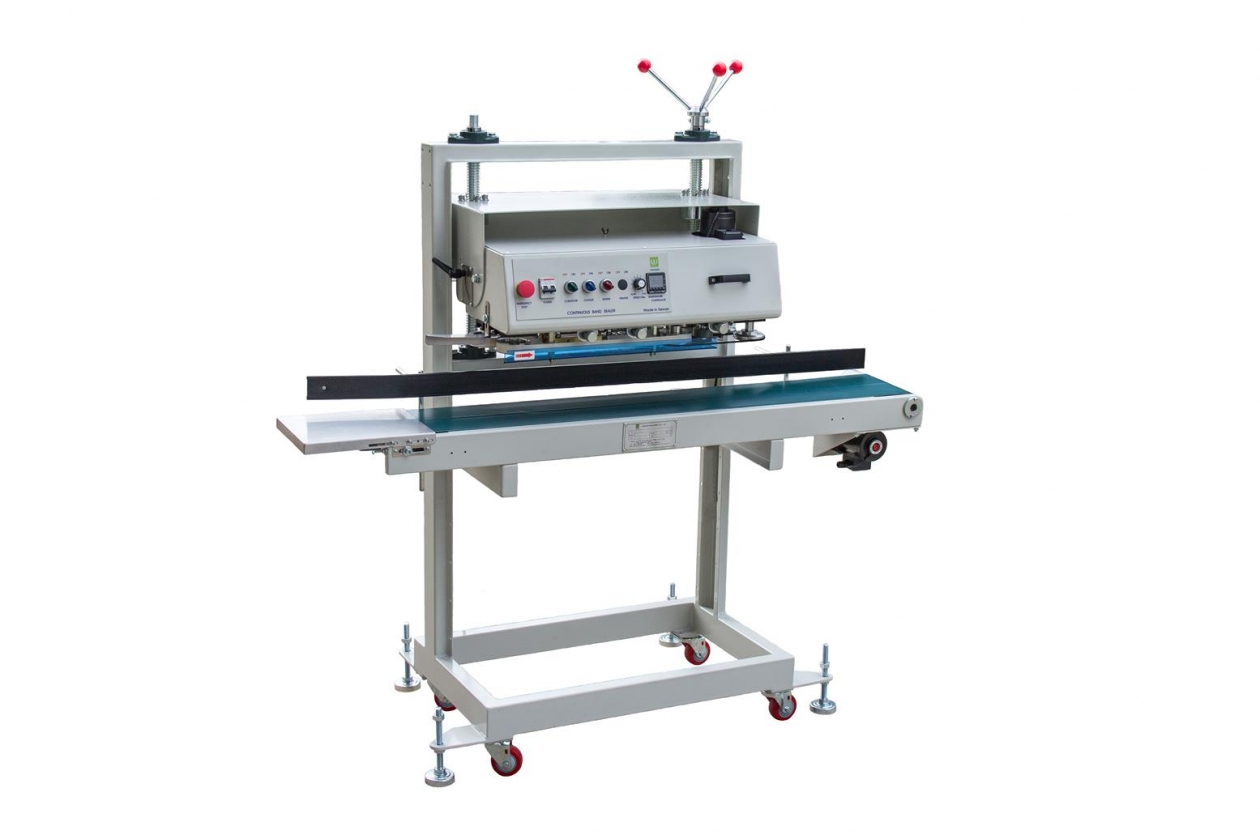

SV-20M – Vertical Sealer (Adjustable Sealing Head)

Product Number:SV-20M
Vertical Band Sealer SV-20M features a sealing head that allows to adjust its angle in a 0-45 degrees range. This largely improves operating visibility as well as convenience.
  • Dimensions 1580 x 820 x 1670 mm (LxWxH)
    Conveyor belt size 1440 x 200 mm (LxW)
    Electrical 100 to 230 VAC /1 Ph / 50/60HZ
    Infeed direction Left to Right (standard)
    Bag thickness Up to 0.7 mm
    Sealing speed 0-12 m per min. (variable speed)
    Temperature range 0-399 degrees Celsius
    Sealing width Standard 10 mm (5/15/20 mm available)
    Bag length range 100-800 mm
    Conveyor width 200 mm
    Conveyor loading weight 10 kg


    Two heaters (F)

    Ribbon coder (R)

    Gas Flush System (G)

    Conveyor width 300mm or 400 mm (-30/40-)
